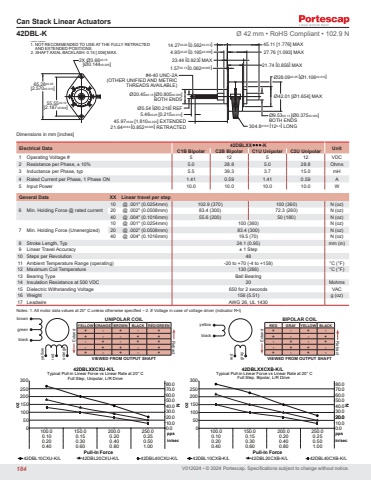

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mm [inches]Can Stack Linear ActuatorsElectrical Data 42DBLXX •••-K Unit C1B Bipolar C2B Bipolar C1U Unipolar C2U Unipolar1 Operating Voltage # 5 12 5 12 VDC2 Resistance per Phase, ± 10% 5.0 28.8 5.0 28.8 Ohms3 Inductance per Phase, typ 5.5 39.3 3.7 15.0 mH4 Rated Current per Phase, 1 Phase ON 1.41 0.59 1.41 0.59 A5 Input Power 10.0 10.0 10.0 10.0 WGeneral Data XX Linear travel per step6 Min. Holding Force @ rated current10 @ .001\102.9 (370) 100 (360) N (oz)20 @ .002\83.4 (300) 72.3 (260) N (oz)40 @ .004\55.6 (200) 50 (180) N (oz)7 Min. Holding Force (Unenergized)10 @ .001\100 (360) N (oz)20 @ .002\83.4 (300) N (oz)40 @ .004\19.5 (70) N (oz)8 Stroke Length, Typ 24.1 (0.95) mm (in)9 Linear Travel Accuracy ± 1 Step10 Steps per Revolution 4811 Ambient Temperature Range (operating) -20 to +70 (-4 to +158) °C (°F)12 Maximum Coil Temperature 130 (266) °C (°F)13 Bearing Type Ball Bearing14 Insulation Resistance at 500 VDC 20 Mohms15 Dielectric Withstanding Voltage 650 for 2 seconds VAC16 Weight 156 (5.51) g (oz)17 Leadwire AWG 26, UL 143042DBL-K Ø 42 mm • RoHS Compliant • 102.9 NNotes: 1. All motor data values at 20° C unless otherwise specified – 2. # Voltage in case of voltage driver (indicator R•I)0.020.010.030.040.050.060.070.080.0050100150200250300100.0 150.0 200.0 250.00.10 0.15 0.20 0.250.20 0.30 0.40 0.500.40 0.60 0.80 1.00in/secpps42DBLXXCXU-K/L42DBL10CXU-K/L 42DBL20CXU-K/L 42DBL40CXU-K/LPull-In ForceozNTypical Pull-in Linear Force vs Linear Rate at 20° CFull Step, Unipolar, L/R Drive0.020.010.030.040.050.060.070.080.0050100150200250300100.0 150.0 200.0 250.00.10 0.15 0.20 0.250.20 0.30 0.40 0.500.40 0.60 0.80 1.0020.042DBLXXCXB-K/L42DBL10CXB-K/L 42DBL20CXB-K/L 42DBL40CXB-K/LPull-In ForceozNTypical Pull-in Linear Force vs Linear Rate at 20° CFull Step, Bipolar, L/R Drive in/secppsNOTES:1. NOT RECOMMENDED TO USE AT THE FULLY RETRACTED AND EXTENDED POSITIONS.2. SHAFT AXIAL BACKLASH: 0.15 [.006] MAX.#4-40 UNC-2A (OTHER UNIFIED AND METRIC THREADS AVAILABLE)45.97±0.64 [1.810±0.025] EXTENDED21.64±0.64 [0.852±0.025] RETRACTEDØ20.45±0.13 [Ø0.805±0.005]BOTH ENDSØ9.53±0.13 [Ø0.375±0.005]BOTH ENDSØ28.09±0.25 [Ø1.106±0.010]1.57±0.13 [0.062±0.005]5.46±0.25 [0.215±0.010]4.95±0.20 [0.195±0.008]14.27±0.20 [0.562±0.012]Ø5.54 [Ø0.218] REF304.8±10.0 [12±.4] LONG27.76 [1.093] MAX23.44 [0.923] MAX21.74 [0.856] MAX45.11 [1.776] MAXØ42.01 [Ø1.654] MAX55.55±0.10[2.187±0.004]65.28±0.25[2.570±0.010]2X Ø3.66±0.13[Ø0.144±0.005]UNIPOLAR COILYELLOW ORANGE BROWN BLACK RED/GREEN+ - + - ++ - - + +- + - + +- + + - ++ - + - +VIEWED FROM OUTPUT SHAFTBIPOLAR COILRED GRAY YELLOW BLACK+ - + -+ - - +- + - +- + + -+ - + -VIEWED FROM OUTPUT SHAFTbrowngreenblackyellow red orangeyellowblackred graybrowngreenblackyellow red orangeyellowblackred grayExtend Retract Extend Retract184
