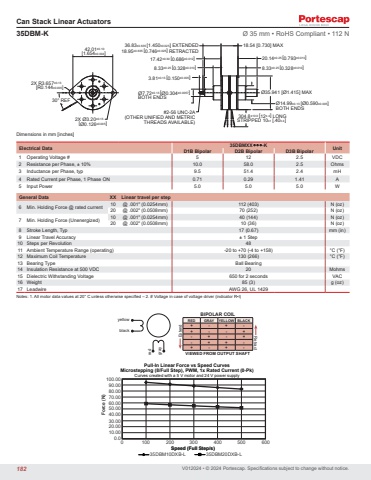

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mm [inches]Can Stack Linear ActuatorsElectrical Data 35DBMXX •••-K Unit D1B Bipolar D2B Bipolar D3B Bipolar1 Operating Voltage # 5 12 2.5 VDC2 Resistance per Phase, ± 10% 10.0 58.0 2.5 Ohms3 Inductance per Phase, typ 9.5 51.4 2.4 mH4 Rated Current per Phase, 1 Phase ON 0.71 0.29 1.41 A5 Input Power 5.0 5.0 5.0 WGeneral Data XX Linear travel per step6 Min. Holding Force @ rated current 10 @ .001\ (0.0254mm) 112 (403) N (oz)20 @ .002\70 (252) N (oz)7 Min. Holding Force (Unenergized) 10 @ .001\ (0.0254mm) 40 (144) N (oz)20 @ .002\10 (36) N (oz)8 Stroke Length, Typ 17 (0.67) mm (in)9 Linear Travel Accuracy ± 1 Step10 Steps per Revolution 4811 Ambient Temperature Range (operating) -20 to +70 (-4 to +158) °C (°F)12 Maximum Coil Temperature 130 (266) °C (°F)13 Bearing Type Ball Bearing14 Insulation Resistance at 500 VDC 20 Mohms15 Dielectric Withstanding Voltage 650 for 2 seconds VAC16 Weight 85 (3) g (oz)17 Leadwire AWG 26, UL 142935DBM-K Ø 35 mm • RoHS Compliant • 112 NNotes: 1. All motor data values at 20° C unless otherwise specified – 2. # Voltage in case of voltage driver (indicator R•I)Pull-In Linear Force vs Speed Curves Microstepping (8/Full Step), PWM, 1x Rated Current (0-Pk)Curves created with a 5 V motor and 24 V power supply 0.010.0020.0030.0040.0050.0060.0070.0080.0090.00100.000 100 200 300 400 500 600Force (N)Speed (Full Step/s)35DBM10DXB-L 35DBM20DXB-LSpeed (Full Step/s)18.54 [0.730] MAX2X R3.657±0.13[R0.144±0.005]42.01±0.10[1.654±0.004]#2-56 UNC-2A (OTHER UNIFIED AND METRIC THREADS AVAILABLE) 2X Ø3.20±0.13[Ø0.126±0.005]30° REFØ35.941 [Ø1.415] MAXØ14.99±0.13 [Ø0.590±0.005]BOTH ENDS36.83±0.635 [1.450±0.025] EXTENDED18.95±0.635 [0.746±0.025] RETRACTEDØ7.72±0.13 [Ø0.304±0.0057]BOTH ENDS3.81±0.13 [0.150±0.005]8.33±0.25 [0.328±0.010] 8.33±0.25 [0.328±0.010]17.42±0.30 [0.686±0.012] 20.14±0.25 [0.793±0.010]304.8±10.0 [12±.4] LONG STRIPPED 10±1 [.40±.4]BIPOLAR COILRED GRAY YELLOW BLACK+ - + -+ - - +- + - +- + + -+ - + -VIEWED FROM OUTPUT SHAFTbrowngreenblackyellow red orangeyellowblackred grayExtend Retract182
