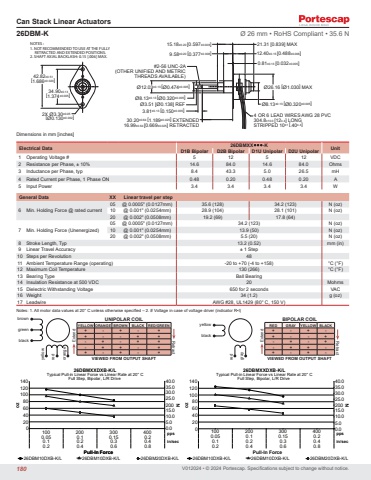

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mm [inches]Can Stack Linear ActuatorsElectrical Data 26DBMXX •••-K Unit D1B Bipolar D2B Bipolar D1U Unipolar D2U Unipolar1 Operating Voltage # 5 12 5 12 VDC2 Resistance per Phase, ± 10% 14.6 84.0 14.6 84.0 Ohms3 Inductance per Phase, typ 8.4 43.3 5.0 26.5 mH4 Rated Current per Phase, 1 Phase ON 0.48 0.20 0.48 0.20 A5 Input Power 3.4 3.4 3.4 3.4 WGeneral Data XX Linear travel per step6 Min. Holding Force @ rated current05 @ 0.0005\35.6 (128) 34.2 (123) N (oz)10 @ 0.001\28.9 (104) 28.1 (101) N (oz)20 @ 0.002\19.2 (69) 17.8 (64)7 Min. Holding Force (Unenergized)05 @ 0.0005\34.2 (123) N (oz)10 @ 0.001\13.9 (50) N (oz)20 @ 0.002\5.5 (20) N (oz)8 Stroke Length, Typ 13.2 (0.52) mm (in)9 Linear Travel Accuracy ± 1 Step10 Steps per Revolution 4811 Ambient Temperature Range (operating) -20 to +70 (-4 to +158) °C (°F)12 Maximum Coil Temperature 130 (266) °C (°F)13 Bearing Type Ball Bearing14 Insulation Resistance at 500 VDC 20 Mohms15 Dielectric Withstanding Voltage 650 for 2 seconds VAC16 Weight 34 (1.2) g (oz)17 Leadwire AWG #28, UL1429 (80° C, 150 V)26DBM-K Ø 26 mm • RoHS Compliant • 35.6 NNotes: 1. All motor data values at 20° C unless otherwise specified – 2. # Voltage in case of voltage driver (indicator R•I)0.05.010.015.020.025.030.035.040.0020406080100120140100 200 300 4000.05 0.1 0.15 0.20.1 0.2 0.3 0.40.2 0.4 0.6 0.8Nin/secozpps26DBMXXDXB-K/L26DBM10DXB-K/L 26DBM10DXB-K/L 26DBM20DXB-K/LPull-In ForceTypical Pull-in Linear Force vs Linear Rate at 20° CFull Step, Bipolar, L/R Drive 0.05.010.015.020.025.030.035.040.0020406080100120140100 200 300 4000.05 0.1 0.15 0.20.1 0.2 0.3 0.40.2 0.4 0.6 0.8Nin/secozpps26DBMXXDXB-K/L26DBM10DXB-K/L 26DBM10DXB-K/L 26DBM20DXB-K/LPull-In ForceTypical Pull-in Linear Force vs Linear Rate at 20° CFull Step, Bipolar, L/R Drive NOTES :1. NOT RECOMMENDED TO USE AT THE FULLY RETRACTED AND EXTENDED POSITIONS.2. SHAFT AXIAL BACKLASH: 0.15 [.006] MAX.Ø3.51 [Ø0.138] REF#2-56 UNC-2A (OTHER UNIFIED AND METRIC THREADS AVAILABLE)Ø8.13±0.13 [Ø0.320±0.005]Ø12.03±0.13 [Ø0.474±0.005]9.58±0.20 [0.377±0.008]15.18±0.20 [0.597±0.008]3.81±0.13 [0.150±0.005]0.81±0.13 [0.032±0.005]12.40±0.15 [0.488±0.006]30.20±0.64 [1.189±0.025] EXTENDED16.99±0.64 [0.669±0.025] RETRACTED21.31 [0.839] MAXØ26.16 [Ø1.030] MAXØ8.13±0.13 [Ø0.320±0.005]4 OR 6 LEAD WIRES AWG 28 PVC304.8±10.0 [12±.4] LONGSTRIPPED 10±1 [.40±.4]2X Ø3.30±0.05[Ø0.130±0.002]42.82±0.51[1.686±0.020]34.90±0.13[1.374±0.005]UNIPOLAR COILYELLOW ORANGE BROWN BLACK RED/GREEN+ - + - ++ - - + +- + - + +- + + - ++ - + - +VIEWED FROM OUTPUT SHAFTBIPOLAR COILRED GRAY YELLOW BLACK+ - + -+ - - +- + - +- + + -+ - + -VIEWED FROM OUTPUT SHAFTbrowngreenblackyellow red orangeyellowblackred graybrowngreenblackyellow red orangeyellowblackred grayExtend Retract Extend Retract180
