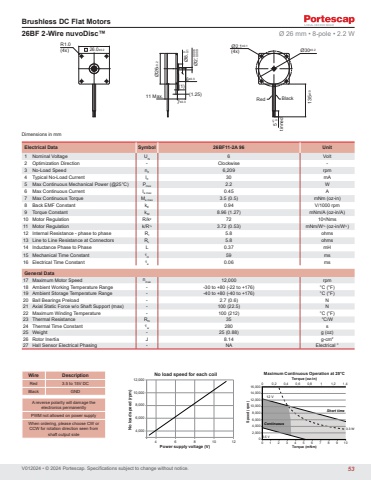

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmBrushless DC Flat MotorsWire DescriptionRed 3.5 to 15V DCBlack GNDA reverse polarity will damage the electronics permanentlyPWM not allowed on power supplyWhen ordering, please choose CW or CCW for rotation direction seen from shaft output sideRedR1.0(4x)BlackØ2-0.006-0.009 Ø26±0.27±0.326.0±0.211 Max. (1.25)(1)6±0.3Ø8 0-0.1 5+1+0 tinnedØ2.1±0.1(4x) Ø30±0.2 135±1026BF 2-Wire nuvoDisc™Speed (rpm)Torque (mNm)04,0002,0006,0008,00010,00012,00014,00016,0000 1 2 3 4 5 6 7 8 9 103.3 W12 VContinuousShort time0 0.2 0.4 0.6 0.8 1 1.2 1.43.5 VTorque (oz-in)Maximum Continuous Operation at 25°CNo load speed (rpm)Power supply voltage (V)No load speed for each coil4,0006,0008,00010,00012,0004 6 8 10 12Ø 26 mm • 8-pole • 2.2 W Electrical Data Symbol 26BF11-2A 96 Unit1 Nominal Voltage UN 6 Volt2 Optimization Direction - Clockwise -3 No-Load Speed n0 6,209 rpm4 Typical No-Load Current I0 30 mA5 Max Continuous Mechanical Power (@25°C) Pmax 2.2 W6 Max Continuous Current Ie max 0.45 A7 Max Continuous Torque Me max 3.5 (0.5) mNm (oz-in)8 Back EMF Constant kE 0.94 V/1000 rpm9 Torque Constant kM 8.96 (1.27) mNm/A (oz-in/A)10 Motor Regulation R/k2 72 103/Nms11 Motor Regulation k/R½ 3.72 (0.53) mNm/W½ (oz-in/W½)12 Internal Resistance - phase to phase RI 5.8 ohms13 Line to Line Resistance at Connectors RL 5.8 ohms14 Inductance Phase to Phase L 0.37 mH15 Mechanical Time Constant τm 59 ms16 Electrical Time Constant τe 0.06 msGeneral Data17 Maximum Motor Speed nmax 12,000 rpm18 Ambient Working Temperature Range - -30 to +80 (-22 to +176) °C (°F)19 Ambient Storage Temperature Range - -40 to +80 (-40 to +176) °C (°F)20 Ball Bearings Preload - 2.7 (0.6) N21 Axial Static Force w/o Shaft Support (max) - 100 (22.5) N22 Maximum Winding Temperature - 100 (212) °C (°F)23 Thermal Resistance Rth 35 °C/W24 Thermal Time Constant τw 280 s25 Weight - 25 (0.88) g (oz)26 Rotor Inertia J 8.14 g-cm227 Hall Sensor Electrical Phasing - NA Electrical °53
