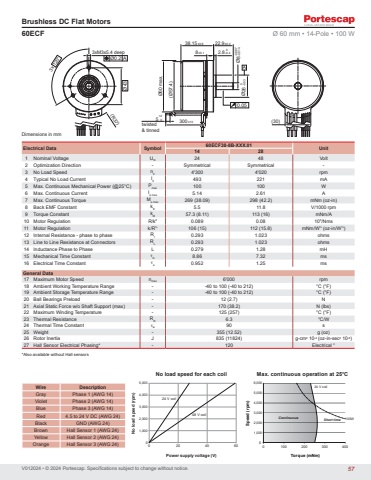

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmBrushless DC Flat Motors(Ø57.4)3x 120°3xM3x5.4 deepØ43 -0.007Ø8-0.014(R37)twisted & tinned(30)38.15±0.8 22.9±0.28±0.10.1 2.8-0.40.07Ø26-0.03 Ø60 max. +2 5 0 300±10A0.05Ø0.2 A0 20 40 60 02,0001,0005,0004,0003,0006,0000100 200 300 400100W24 V coilContinuous Short time04,0001,0002,0003,0005,00024 V coil48 V coilNo load speed (rpm)Power supply voltage (V)No load speed for each coilSpeed (rpm)Torque (mNm)Max. continuous operation at 25°C60ECFElectrical Data Symbol 60ECF38-8B-XXX.01 Unit 14 281 Nominal Voltage UN 24 48 Volt2 Optimization Direction - Symmetrical Symmetrical -3 No Load Speed n0 4'300 4'020 rpm4 Typical No Load Current I0 493 221 mA5 Max. Continuous Mechanical Power (@25°C) Pmax 100 100 W6 Max. Continuous Current Ie max 5.14 2.61 A7 Max. Continuous Torque Me max 269 (38.09) 298 (42.2) mNm (oz-in)8 Back EMF Constant kE 5.5 11.8 V/1000 rpm9 Torque Constant kM 57.3 (8.11) 113 (16) mNm/A10 Motor Regulation R/k2 0.089 0.08 103/Nms11 Motor Regulation k/R½ 106 (15) 112 (15.8) mNm/W½ (oz-in/W½)12 Internal Resistance - phase to phase RI 0.293 1.023 ohms13 Line to Line Resistance at Connectors RL 0.293 1.023 ohms14 Inductance Phase to Phase L 0.279 1.28 mH15 Mechanical Time Constant τm 8.86 7.32 ms16 Electrical Time Constant τe 0.952 1.25 msGeneral Data17 Maximum Motor Speed nmax 6'000 rpm18 Ambient Working Temperature Range - -40 to 100 (-40 to 212) °C (°F)19 Ambient Storage Temperature Range - -40 to 100 (-40 to 212) °C (°F)20 Ball Bearings Preload - 12 (2.7) N21 Axial Static Force w/o Shaft Support (max) - 170 (38.2) N (lbs)22 Maximum Winding Temperature - 125 (257) °C (°F)23 Thermal Resistance Rth 6.3 °C/W24 Thermal Time Constant τw 90 s25 Weight - 355 (12.52) g (oz)26 Rotor Inertia J 835 (11824) g-cm2 10-4 (oz-in-sec2 10-6)27 Hall Sensor Electrical Phasing* - 120 Electrical °Ø 60 mm • 14-Pole • 100 W *Also available without Hall sensorsWire DescriptionGray Phase 1 (AWG 14)Violet Phase 2 (AWG 14)Blue Phase 3 (AWG 14)Red 4.5 to 24 V DC (AWG 24)Black GND (AWG 24)Brown Hall Sensor 1 (AWG 24)Yellow Hall Sensor 2 (AWG 24)Orange Hall Sensor 3 (AWG 24)57
