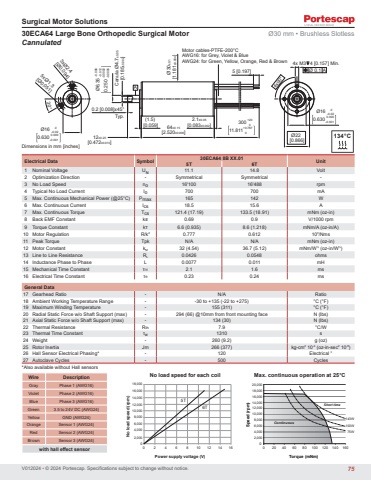

V012024 • © 2024 Portescap. Specifications subject to change without notice.Surgical Motor SolutionsDimensions in mm [inches]Motor cables-PTFE-200°CAWG16: for Grey, Violet & BlueAWG24: for Green, Yellow, Orange, Red & Brown12±0.25[0.472±0.010]64±0.15[2.520±0.006]5 [0.197]30°Ø 0.1 AA4x M3 4 [0.157] Min.4x90°Ø22[0.866]0.630 0.000-0.001Ø16 .00-0.025x[ØØ1.30.051]3x[ØØ2.40.094]0.630 0.000-0.001Ø16 .00-0.020.2 [0.008]x45°Typ. (1.5) [0.059]2.1±0.05[0.083±0.002]11.811+0.787+0.000300 +20+00Ø30±0.1[1.181±0.004]0.250 -0.0002 -0.0005 Ø6.35 -0.006 -0.012 Canula Ø4.7±0.05[0.185±0.002]Electrical Data Symbol 30ECA64 8B XX.01 Unit 5T 6T1 Nominal Voltage UN 11.1 14.8 Volt2 Optimization Direction - Symmetrical Symmetrical -3 No Load Speed n0 16'100 16'488 rpm4 Typical No Load Current I0 700 700 mA5 Max. Continuous Mechanical Power (@25°C) Pmax 165 142 W6 Max. Continuous Current Ics 18.5 15.6 A7 Max. Continuous Torque Tcs 121.4 (17.19) 133.5 (18.91) mNm (oz-in)8 Back EMF Constant kE 0.69 0.9 V/1000 rpm9 Torque Constant kT 6.6 (0.935) 8.6 (1.218) mNm/A (oz-in/A)10 Motor Regulation R/k2 0.777 0.612 103/Nms11 Peak Torque Tpk N/A N/A mNm (oz-in)12 Motor Constant kM 32 (4.54) 36.7 (5.12) mNm/W½ (oz-in/W½)13 Line to Line Resistance RL 0.0426 0.0548 ohms14 Inductance Phase to Phase L 0.0077 0.011 mH15 Mechanical Time Constant τM 2.1 1.6 ms16 Electrical Time Constant τE 0.23 0.24 msGeneral Data17 Gearhead Ratio - N/A Ratio18 Ambient Working Temperature Range - -30 to +135 (-22 to +275) °C (°F)19 Maximum Winding Temperature - 155 (311) °C (°F)20 Radial Static Force w/o Shaft Support (max) - 294 (66) @10mm from front mounting face N (lbs)21 Axial Static Force w/o Shaft Support (max) - 134 (30) N (lbs)22 Thermal Resistance Rth 7.9 °C/W23 Thermal Time Constant τw 1310 s24 Weight - 260 (9.2) g (oz)25 Rotor Inertia Jm 266 (377) kg-cm2 10-4 (oz-in-sec2 10-6)26 Hall Sensor Electrical Phasing* - 120 Electrical °27 Autoclave Cycles - 500 Cycles*Also available without Hall sensorsWire DescriptionGray Phase 1 (AWG16)Violet Phase 2 (AWG16)Blue Phase 3 (AWG16)Green 3.5 to 24V DC (AWG24)Yellow GND (AWG24)Orange Sensor 1 (AWG24)Red Sensor 2 (AWG24)Brown Sensor 3 (AWG24)with hall effect sensor30ECA64 Large Bone Orthopedic Surgical Motor Ø30 mm • Brushless SlotlessCannulated5T6T0 2 4 6 8 10 12 14 16 014,00016,00018,00020,0004,0006,0008,0002,00010,00012,000020 40 60 80 100 120 140 160143W100W75WContinuousShort time04,00014,0008,00010,0002,0006,00016,00012,00018,000No load speed (rpm)Power supply voltage (V)No load speed for each coilSpeed (rpm)Torque (mNm)Max. continuous operation at 25°C134°C75
