P. 11

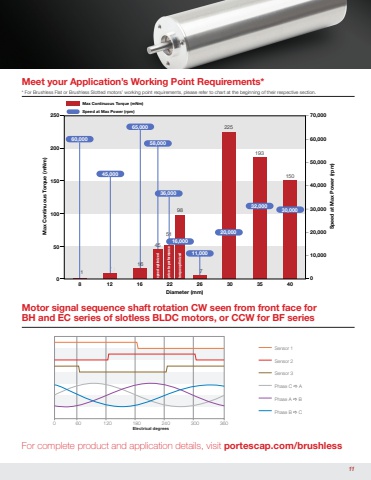

Meet your Application’s Working Point Requirements*
          * For Brushless Slotted Working Point Requirements, please refer to chart on page 36.

               250                                                                                    70,000

                           Max Continuous Torque (mNm)                                        225
                           Speed at Max Power (rpm)
                                                                                                      60,000
                                                                         58,000
               200                                                                                    50,000
              Max Continuous Torque (mNm)  150    30,000        35,000        36,000  98              40,000  Speed at Max Power (rpm)








                                                                                                      30,000
               100
                      25,000

                                                                                51                    20,000
                                                                                   16,000    16,000
                50                                                         45
                                    11,000                                                            10,000

                                                    13            14        speed optimized  price-to-performance  torque optimized
                       2.9            7
                 0                                                                                    0
                        21            26            32            16             22            30
                                                      Diameter (mm)


         Motor signal sequence shaft rotation CW seen from front face for
         BH and EC series of slotless BLDC motors, or CCW for BF series





                                                                                            Sensor 1

                                                                                            Sensor 2
                                                                                            Sensor 3

                                                                                            Phase C  A

                                                                                            Phase A  B
                                                                                            Phase B  C

                    0      60       120       180       240      300       360
                                              Electrical degrees

         For complete product and application details, visit portescap.com/brushless



        V012021 • © 2021 Portescap. Specifications subject to change without notice.                                11
