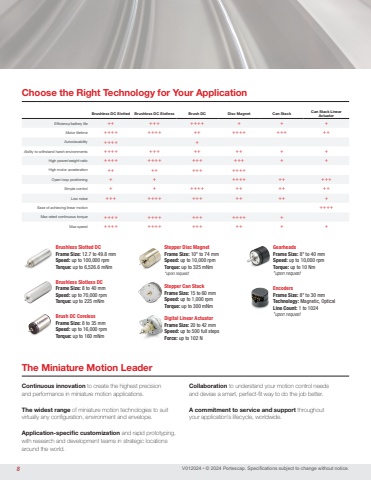

Choose the Right Technology for Your Application

Brushless DC Slotted Brushless DC Slotless Brush DC Disc Magnet Can Stack Can Stack Linear
Actuator
Efficiency/battery life ++ +++ ++++ + + +
Motor lifetime ++++ ++++ ++ ++++ +++ ++
Autoclavability ++++ +
Ability to withstand harsh environments ++++ +++ ++ ++ + +
High power/weight ratio ++++ ++++ +++ +++ + +
High motor acceleration ++ ++ +++ ++++
Open loop positioning + + ++++ ++ +++
Simple control + + ++++ ++ ++ ++
Low noise +++ ++++ +++ ++ ++ +
Ease of achieving linear motion ++++
Max rated continuous torque ++++ ++++ +++ ++++ +
Max speed ++++ ++++ +++ ++ + +

Brushless Slotted DC Stepper Disc Magnet Gearheads
Frame Size: 12.7 to 50.8 mm* Frame Size: 10* to 74 mm Frame Size: 8* to 40 mm
Speed: up to 100,000 rpm Speed: up to 10,000 rpm Speed: up to 10,000 rpm
Torque: up to 6,526.6 mNm Torque: up to 325 mNm Torque: up to 10 Nm
*upon request *upon request *upon request
Stepper Can Stack
Brushless Slotless DC Frame Size: 15 to 60 mm Encoders
Frame Size: 16 to 35 mm Speed: up to 1,000 rpm Frame Size: 8* to 30 mm
Speed: up to 70,000 rpm Torque: up to 300 mNm Technology: Magnetic, Optical
Torque: up to 225 mNm Line Count: 1 to 1024
Digital Linear Actuator *upon request
Brush DC Coreless Frame Size: 20 to 42 mm
Frame Size: 8 to 35 mm Speed: up to 500 full steps
Speed: up to 16,000 rpm Force: up to 102 N
Torque: up to 160 mNm

The Miniature Motion Leader

Continuous innovation to create the highest precision Collaboration to understand your motion control needs
and performance in miniature motion applications. and devise a smart, perfect-fit way to do the job better.

The widest range of miniature motion technologies to suit A commitment to service and support throughout
virtually any configuration, environment and envelope. your application’s lifecycle, worldwide.

Application-specific customization and rapid prototyping,
with research and development teams in strategic locations
around the world.
