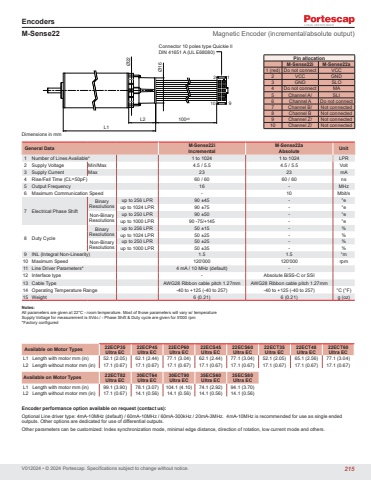

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmEncodersGeneral Data M-Sense22iIncrementalM-Sense22aAbsolute Unit1 Number of Lines Available* 1 to 1024 1 to 1024 LPR2 Supply Voltage Min/Max 4.5 / 5.5 4.5 / 5.5 Volt3 Supply Current Max 23 23 mA4 Rise/Fall Time (CL=50pF) 60 / 60 60 / 60 ns5 Output Frequency 16 - MHz6 Maximum Communication Speed - 10 Mbit/s7 Electrical Phase ShiftBinary Resolutionsup to 256 LPR 90 ±45 - °eup to 1024 LPR 90 ±75 - °eNon-Binary Resolutionsup to 250 LPR 90 ±50 - °eup to 1000 LPR 90 -75/+145 - °e8 Duty CycleBinary Resolutionsup to 256 LPR 50 ±15 - %up to 1024 LPR 50 ±25 - %Non-Binary Resolutionsup to 250 LPR 50 ±25 - %up to 1000 LPR 50 ±35 - %9 INL (Integral Non-Linearity) 1.5 1.5 °m10 Maximum Speed 120'000 120'000 rpm11 Line Driver Parameters* 4 mA / 10 MHz (default) -12 Interface type - Absolute BiSS-C or SSI13 Cable Type AWG28 Ribbon cable pitch 1.27mm AWG28 Ribbon cable pitch 1.27mm14 Operating Temperature Range -40 to +125 (-40 to 257) -40 to +125 (-40 to 257) °C (°F)15 Weight 6 (0.21) 6 (0.21) g (oz)Notes:All parameters are given at 22°C - room temperature. Most of those parameters will vary w/ temperatureSupply Voltage for measurement is 5Vdc / - Phase Shift & Duty cycle are given for 5'000 rpm*Factory configuredM-Sense22 Magnetic Encoder (incremental/absolute output)Connector 10 poles type Quickie llDIN 41651 A (UL E68080)10 92 1L1L2 100±5ØØ1622Pin allocationM-Sense22i M-Sense22a1 (red) Do not connect VCC2 VCC GND3 GND SLO4 Do not connect MA5 Channel A/ SLI6 Channel A Do not connect7 Channel B/ Not connected8 Channel B Not connected9 Channel Z/ Not connected10 Channel Z/ Not connectedAvailable on Motor Types 22ECP35 Ultra EC22ECP45 Ultra EC22ECP60 Ultra EC22ECS45 Ultra EC22ECS60 Ultra EC22ECT35 Ultra EC22ECT48 Ultra EC22ECT60 Ultra ECL1 Length with motor mm (in) 52.1 (2.05) 62.1 (2.44) 77.1 (3.04) 62.1 (2.44) 77.1 (3.04) 52.1 (2.05) 65.1 (2.56) 77.1 (3.04)L2 Length without motor mm (in) 17.1 (0.67) 17.1 (0.67) 17.1 (0.67) 17.1 (0.67) 17.1 (0.67) 17.1 (0.67) 17.1 (0.67) 17.1 (0.67)Available on Motor Types 22ECT82 Ultra EC30ECT64 Ultra EC30ECT90 Ultra EC35ECS60 Ultra EC35ECS80 Ultra ECL1 Length with motor mm (in) 99.1 (3.90) 78.1 (3.07) 104.1 (4.10) 74.1 (2.92) 94.1 (3.70)L2 Length without motor mm (in) 17.1 (0.67) 14.1 (0.56) 14.1 (0.56) 14.1 (0.56) 14.1 (0.56)Encoder performance option available on request (contact us):Optional Line driver type: 4mA-10MHz (default) / 60mA-10MHz / 60mA-300kHz / 20mA-3MHz. 4mA-10MHz is recommended for use as single ended outputs. Other options are dedicated for use of differential outputs. Other parameters can be customized: Index synchronization mode, minimal edge distance, direction of rotation, low current mode and others.215
