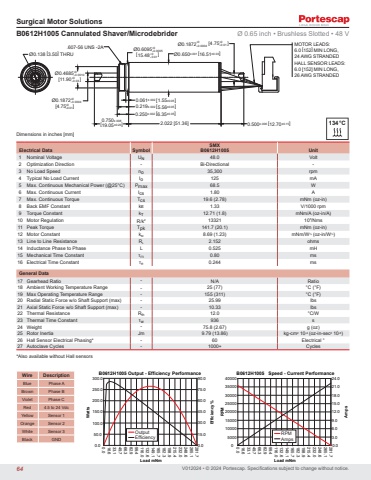

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in inches [mm]Surgical Motor Solutions.607-56 UNS -2A MOTOR LEADS:6.0 [152] MIN LONG,24 AWG STRANDEDHALL SENSOR LEADS:6.0 [152] MIN LONG,26 AWG STRANDED0.750±.008 2.022 [51.36] [19.05±0.20] 0.500±.006 [12.70±0.15]Ø0.650±.001 [16.51±0.03]Ø0.1872+0-0.0004 +0-0.01 [4.75 ]Ø0.4685Ø0.138 [3.50] THRU+0-0.0010 +0-0.03 [11.90 ]Ø0.6095+0-0.0005 +0-0.01 [15.48 ]Ø0.1872+0-0.0004 +0-0.01 [4.75 ]0.061±.002 [1.55±0.05]0.219±.002 [5.56±0.05]0.250±.002 [6.35±0.05]B0612H1005 Cannulated Shaver/Microdebrider Ø 0.65 inch • Brushless Slotted • 48 V Electrical Data SymbolSMXB0612H1005 Unit1 Nominal Voltage UN 48.0 Volt2 Optimization Direction - Bi-Directional -3 No Load Speed n0 35,300 rpm4 Typical No Load Current I0 125 mA5 Max. Continuous Mechanical Power (@25°C) Pmax 68.5 W6 Max. Continuous Current Ics 1.80 A7 Max. Continuous Torque Tcs 19.6 (2.78) mNm (oz-in)8 Back EMF Constant kE 1.33 V/1000 rpm9 Torque Constant kT 12.71 (1.8) mNm/A (oz-in/A)10 Motor Regulation R/k2 13321 103/Nms11 Peak Torque Tpk 141.7 (20.1) mNm (oz-in)12 Motor Constant kM 8.69 (1.23) mNm/W½ (oz-in/W½)13 Line to Line Resistance RL 2.152 ohms14 Inductance Phase to Phase L 0.525 mH15 Mechanical Time Constant τM 0.80 ms16 Electrical Time Constant τE 0.244 msGeneral Data17 Gearhead Ratio - N/A Ratio18 Ambient Working Temperature Range - 25 (77) °C (°F)19 Max Operating Temperature Range - 155 (311) °C (°F)20 Radial Static Force w/o Shaft Support (max) - 25.99 lbs21 Axial Static Force w/o Shaft Support (max) - 10.33 lbs22 Thermal Resistance Rth 12.0 °C/W23 Thermal Time Constant τw 936 s24 Weight - 75.8 (2.67) g (oz)25 Rotor Inertia Jm 9.79 (13.86) kg-cm2 10-4 (oz-in-sec2 10-6)26 Hall Sensor Electrical Phasing* - 60 Electrical °27 Autoclave Cycles - 1000+ Cycles0.015.030.045.060.075.090.00.050.0100.0150.0200.0250.0300.00.016.633.149.766.382.999.4116.0132.6149.1165.7182.3198.9215.4232.0248.6265.1281.7Efficiency % WattsB0612H1005 Output - Efficiency PerformanceLoad mNmOutputEfficiency0.03.06.09.012.015.018.021.024.005000100001500020000250003000035000400000.016.633.149.766.382.999.4116.0132.6149.1165.7182.3198.9215.4232.0248.6265.1281.7RPM AmpsB0612H1005 Speed - Current PerformanceLoad mNmRPMAmpsWire DescriptionBlue Phase ABrown Phase BViolet Phase CRed 4.5 to 24 VdcYellow Sensor 1Orange Sensor 2White Sensor 3Black GND*Also available without Hall sensors134°C64
