P. 65

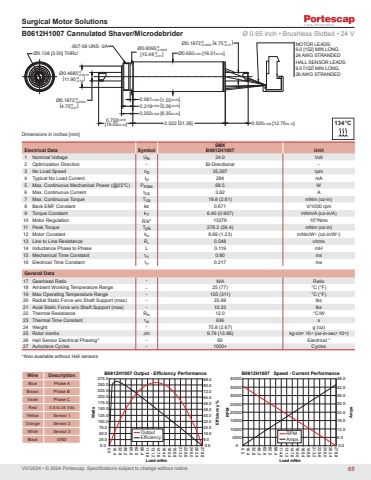

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in inches [mm]Surgical Motor Solutions0.08.016.024.032.040.048.056.064.072.080.088.00.025.050.075.0100.0125.0150.0175.0200.0225.0250.0275.00.016.432.849.265.682.098.4114.8131.2147.6164.0180.4196.8213.2229.6246.0262.4278.8Efficiency % WattsB0612H1007 Output - Efficiency PerformanceLoad mNmOutputEfficiency0.06.012.018.024.030.036.042.048.005000100001500020000250003000035000400000.016.432.849.265.682.098.4114.8131.2147.6164.0180.4196.8213.2229.6246.0262.4278.8RPM AmpsB0612H1007 Speed - Current PerformanceLoad mNmRPMAmps.607-56 UNS -2A MOTOR LEADS:6.0 [152] MIN LONG,24 AWG STRANDEDHALL SENSOR LEADS:6.0 [152] MIN LONG,26 AWG STRANDED0.750±.008 2.022 [51.36] [19.05±0.20] 0.500±.006 [12.70±0.15]Ø0.650±.001 [16.51±0.03]Ø0.1872+0-0.0004 +0-0.01 [4.75 ]Ø0.4685Ø0.138 [3.50] THRU+0-0.0010 +0-0.03 [11.90 ]Ø0.6095+0-0.0005 +0-0.01 [15.48 ]Ø0.1872+0-0.0004 +0-0.01 [4.75 ]0.061±.002 [1.55±0.05]0.219±.002 [5.56±0.05]0.250±.002 [6.35±0.05]B0612H1007 Cannulated Shaver/Microdebrider Ø 0.65 inch • Brushless Slotted • 24 V Electrical Data SymbolSMXB0612H1007 Unit1 Nominal Voltage UN 24.0 Volt2 Optimization Direction - Bi-Directional -3 No Load Speed n0 35,597 rpm4 Typical No Load Current I0 284 mA5 Max. Continuous Mechanical Power (@25°C) Pmax 68.5 W6 Max. Continuous Current Ics 3.62 A7 Max. Continuous Torque Tcs 19.8 (2.81) mNm (oz-in)8 Back EMF Constant kE 0.671 V/1000 rpm9 Torque Constant kT 6.40 (0.907) mNm/A (oz-in/A)10 Motor Regulation R/k2 13379 103/Nms11 Peak Torque Tpk 278.2 (39.4) mNm (oz-in)12 Motor Constant kM 8.69 (1.23) mNm/W½ (oz-in/W½)13 Line to Line Resistance RL 0.548 ohms14 Inductance Phase to Phase L 0.119 mH15 Mechanical Time Constant τM 0.80 ms16 Electrical Time Constant τE 0.217 msGeneral Data17 Gearhead Ratio - N/A Ratio18 Ambient Working Temperature Range - 25 (77) °C (°F)19 Max Operating Temperature Range - 155 (311) °C (°F)20 Radial Static Force w/o Shaft Support (max) - 25.99 lbs21 Axial Static Force w/o Shaft Support (max) - 10.33 lbs22 Thermal Resistance Rth 12.0 °C/W23 Thermal Time Constant τw 936 s24 Weight - 75.8 (2.67) g (oz)25 Rotor Inertia Jm 9.79 (13.86) kg-cm2 10-4 (oz-in-sec2 10-6)26 Hall Sensor Electrical Phasing* - 60 Electrical °27 Autoclave Cycles - 1000+ CyclesWire DescriptionBlue Phase ABrown Phase BViolet Phase CRed 4.5 to 24 VdcYellow Sensor 1Orange Sensor 2White Sensor 3Black GND*Also available without Hall sensors134°C65
