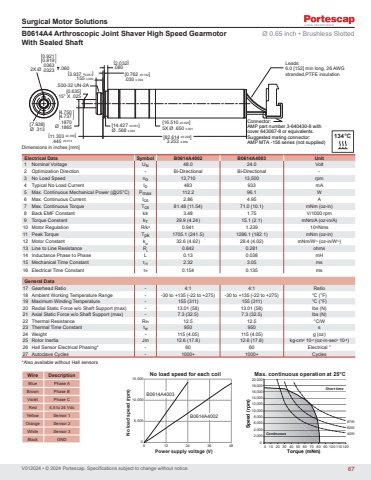

V012024 • © 2024 Portescap. Specifications subject to change without notice.Surgical Motor SolutionsDimensions in inches [mm]Electrical Data Symbol B0614A4002 B0614A4003 Unit1 Nominal Voltage UN 48.0 24.0 Volt2 Optimization Direction - Bi-Directional Bi-Directional -3 No Load Speed n0 13,710 13,500 rpm4 Typical No Load Current I0 483 933 mA5 Max. Continuous Mechanical Power (@25°C) Pmax 112.2 96.1 W6 Max. Continuous Current Ics 2.86 4.95 A7 Max. Continuous Torque Tcs 81.48 (11.54) 71.0 (10.1) mNm (oz-in)8 Back EMF Constant kE 3.48 1.75 V/1000 rpm9 Torque Constant kT 29.9 (4.24) 15.1 (2.1) mNm/A (oz-in/A)10 Motor Regulation R/k2 0.941 1.239 103/Nms11 Peak Torque Tpk 1705.1 (241.5) 1286.1 (182.1) mNm (oz-in)12 Motor Constant kM 32.6 (4.62) 28.4 (4.02) mNm/W½ (oz-in/W½)13 Line to Line Resistance RL 0.842 0.281 ohms14 Inductance Phase to Phase L 0.13 0.038 mH15 Mechanical Time Constant τM 2.32 3.05 ms16 Electrical Time Constant τE 0.154 0.135 msGeneral Data17 Gearhead Ratio - 4:1 4:1 Ratio18 Ambient Working Temperature Range - -30 to +135 (-22 to +275) -30 to +135 (-22 to +275) °C (°F)19 Maximum Winding Temperature - 155 (311) 155 (311) °C (°F)20 Radial Static Force w/o Shaft Support (max) - 13.01 (58) 13.01 (58) lbs (N)21 Axial Static Force w/o Shaft Support (max) - 7.3 (32.5) 7.3 (32.5) lbs (N)22 Thermal Resistance Rth 12.5 12.5 °C/W23 Thermal Time Constant τw 950 950 s24 Weight - 115 (4.05) 115 (4.05) g (oz)25 Rotor Inertia Jm 12.6 (17.8) 12.6 (17.8) kg-cm2 10-4 (oz-in-sec2 10-6)26 Hall Sensor Electrical Phasing* - 60 60 Electrical °27 Autoclave Cycles - 1000+ 1000+ CyclesWire DescriptionBlue Phase ABrown Phase BViolet Phase CRed 4.5 to 24 VdcYellow Sensor 1Orange Sensor 2White Sensor 3Black GNDLeads:6.0 [152] min long, 26 AWG [3.937 ±0.051] stranded,PTFE insulation.155 ±.002[0.635]15° X .025[0.762 ±0.102].030 ±.004[11.303 ±0.356].445 ±0.014[2.032].080Ø4.7504.737.1870.1865 [14.427 ±0.051] Ø .568 ±.002[16.510 ±0.025]5X Ø .650 ±.001[82.614 ±0.229]3.253 ±.009.500-32 UN-2A[7.938]Ø .3132X Ø0.9210.819.0363.0323 .060Connector:AMP part number 3-640430-8 with cover 643067-8 or equivalents. Suggested mating connector: AMP MTA -156 series (not supplied)B0614A4 Arthroscopic Joint Shaver High Speed Gearmotor With Sealed ShaftØ 0.65 inch • Brushless Slotted134°C05,00010,00015,0000 12 24 36 48No load speed (rpm)Power supply voltage (V)No load speed for each coilB0614A4003B0614A400204,0008,00012,00016,00020,0002,0006,00010,00014,00018,000010 20 30 40 50 60 70 80 90 100 110 120Speed (rpm)Torque (mNm)87W60W40WMax. continuous operation at 25°CContinuousShort time*Also available without Hall sensors67
