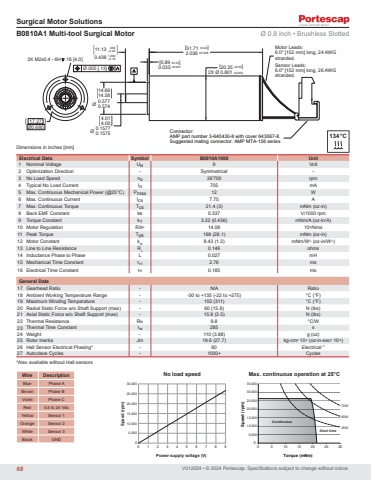

V012024 • © 2024 Portescap. Specifications subject to change without notice.Surgical Motor SolutionsDimensions in inches [mm][20.35 ±0.05]2X Ø 0.801 ±0.002Connector:AMP part number 3-640430-8 with cover 643067-8. Suggested mating connector: AMP MTA-156 seriesMotor Leads:6.0\stranded.Sensor Leads:6.0\stranded.3X M2x0.4 - 6H .16 [4.0]Ø0.680[ 17.27 ]Ø.005 [.13]Ø14.6614.580.5770.574Ø4.014.000.15770.15750.438 +.000-.0.1811.13 +.000-.0.46[0.89 ±0.03]0.035 ±0.001[51.71 ±0.20]2.036 ±0.008B0810A1 Multi-tool Surgical Motor Ø 0.8 inch • Brushless SlottedElectrical Data Symbol B0810A1000 Unit1 Nominal Voltage UN 9 Volt2 Optimization Direction - Symmetrical -3 No Load Speed n0 26'700 rpm4 Typical No Load Current I0 705 mA5 Max. Continuous Mechanical Power (@25°C) Pmax 12 W6 Max. Continuous Current Ics 7.75 A7 Max. Continuous Torque Tcs 21.4 (3) mNm (oz-in)8 Back EMF Constant kE 0.337 V/1000 rpm9 Torque Constant kT 3.22 (0.456) mNm/A (oz-in/A)10 Motor Regulation R/k2 14.08 103/Nms11 Peak Torque Tpk 198 (28.1) mNm (oz-in)12 Motor Constant kM 8.43 (1.2) mNm/W½ (oz-in/W½)13 Line to Line Resistance RL 0.146 ohms14 Inductance Phase to Phase L 0.027 mH15 Mechanical Time Constant τM 2.76 ms16 Electrical Time Constant τE 0.185 msGeneral Data17 Gearhead Ratio - N/A Ratio18 Ambient Working Temperature Range - -30 to +135 (-22 to +275) °C (°F)19 Maximum Winding Temperature - 155 (311) °C (°F)20 Radial Static Force w/o Shaft Support (max) - 60 (15.8) N (lbs)21 Axial Static Force w/o Shaft Support (max) - 15.8 (3.5) N (lbs)22 Thermal Resistance Rth 9.8 °C/W23 Thermal Time Constant τw 285 s24 Weight - 110 (3.88) g (oz)25 Rotor Inertia Jm 19.6 (27.7) kg-cm2 10-4 (oz-in-sec2 10-6)26 Hall Sensor Electrical Phasing* - 60 Electrical °27 Autoclave Cycles - 1000+ CyclesWire DescriptionBlue Phase ABrown Phase BViolet Phase CRed 4.5 to 24 VdcYellow Sensor 1Orange Sensor 2White Sensor 3Black GND0 1 2 3 4 5 6 7 8 9 015,00010,0005,00030,00025,00020,00035,00005 10 15 20 25 3075W50W25WContinuousShort time020,00025,0005,00010,00015,00030,000Speed (rpm)Power supply voltage (V)No load speedSpeed (rpm)Torque (mNm)Max. continuous operation at 25°C134°C*Also available without Hall sensors68
