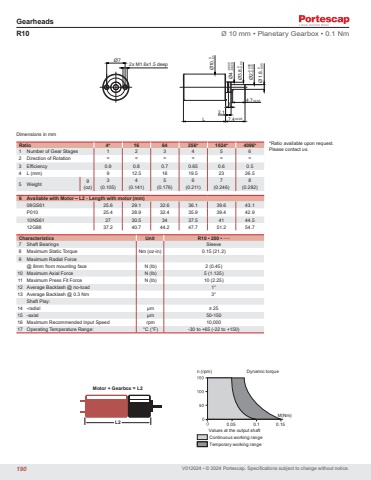

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmGearheadsR10 Ø 10 mm • Planetary Gearbox • 0.1 NmRatio 4* 16 64 256* 1024* 4096*1 Number of Gear Stages 1 2 3 4 5 62 Direction of Rotation = = = = = =3 Efficiency 0.9 0.8 0.7 0.65 0.6 0.54 L (mm) 9 12.5 16 19.5 23 26.55 Weight g 3 4 5 6 7 8(oz) (0.105) (0.141) (0.176) (0.211) (0.246) (0.282)6 Available with Motor – L2 - Length with motor (mm)08GS61 25.6 29.1 32.6 36.1 39.6 43.1P010 25.4 28.9 32.4 35.9 39.4 42.910NS61 27 30.5 34 37.5 41 44.512G88 37.2 40.7 44.2 47.7 51.2 54.7Characteristics Unit R10 • 200 • ····7 Shaft Bearings Sleeve8 Maximum Static Torque Nm (oz-in) 0.15 (21.2)9 Maximum Radial Force@ 8mm from mounting face N (lb) 2 (0.45)10 Maximum Axial Force N (lb) 5 (1.125)11 Maximum Press Fit Force N (lb) 10 (2.25)12 Average Backlash @ no-load 1°13 Average Backlash @ 0.3 Nm 3°Shaft Play:14 -radial μm ≤ 2515 -axial μm 50-15016 Maximum Recommended Input Speed rpm 10,000 17 Operating Temperature Range: °C (°F) -30 to +65 (-22 to +150)2.112x M1.6x1.5 deepØ7LØ2-0.006-0.012Ø4-0.005-0.020Ø3.8 0-0.05 Ø1.8 0-Ø0.05 10 0-0.1 4.7±0.057.4±0.05L2Motor + Gearbox = L2M (Nm)Continuous working rangeTemporary working rangeValues at the output shaftn (rpm) Dynamic torque0.05 0.1 0.15*Ratio available upon request. Please contact us.190
