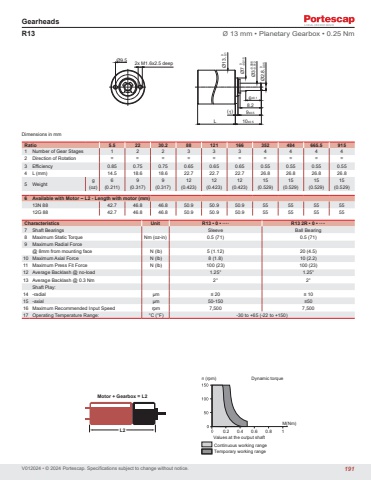

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmGearheadsR13 Ø 13 mm • Planetary Gearbox • 0.25 NmRatio 5.5 22 30.2 88 121 166 352 484 665.5 9151 Number of Gear Stages 1 2 2 3 3 3 4 4 4 42 Direction of Rotation = = = = = = = = = =3 Efficiency 0.85 0.75 0.75 0.65 0.65 0.65 0.55 0.55 0.55 0.554 L (mm) 14.5 18.6 18.6 22.7 22.7 22.7 26.8 26.8 26.8 26.85 Weight g 6 9 9 12 12 12 15 15 15 15(oz) (0.211) (0.317) (0.317) (0.423) (0.423) (0.423) (0.529) (0.529) (0.529) (0.529)6 Available with Motor – L2 - Length with motor (mm)13N 88 42.7 46.8 46.8 50.9 50.9 50.9 55 55 55 5512G 88 42.7 46.8 46.8 50.9 50.9 50.9 55 55 55 55Characteristics Unit R13 • 0 • ···· R13 2R • 0 • ····7 Shaft Bearings Sleeve Ball Bearing8 Maximum Static Torque Nm (oz-in) 0.5 (71) 0.5 (71)9 Maximum Radial Force@ 8mm from mounting face N (lb) 5 (1.12) 20 (4.5)10 Maximum Axial Force N (lb) 8 (1.8) 10 (2.2)11 Maximum Press Fit Force N (lb) 100 (23) 100 (23)12 Average Backlash @ no-load 1.25° 1.25°13 Average Backlash @ 0.3 Nm 2° 2°Shaft Play:14 -radial μm ≤ 20 ≤ 1015 -axial μm 50-150 ≤5016 Maximum Recommended Input Speed rpm 7,500 7,500 17 Operating Temperature Range: °C (°F) -30 to +65 (-22 to +150)2x M1.6x2.5 deep6±0.18.2(1) 9±0.5L 10±0.5Ø9.5Ø3-0.006-0.012Ø7 0-0.015Ø2.8 0-Ø0.05 13 0-0.1 L2Motor + Gearbox = L2M (Nm)Continuous working rangeTemporary working rangeValues at the output shaftn (rpm) Dynamic torque0.2 0.4 0.6 0.8 1191
