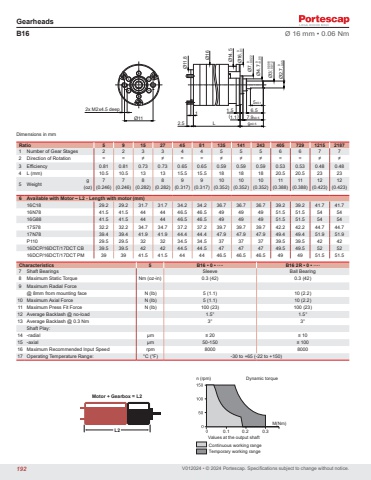

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmGearheadsB16 Ø 16 mm • 0.06 NmRatio 5 9 15 27 45 81 135 141 243 405 729 1215 21871 Number of Gear Stages 2 2 3 3 4 4 5 5 5 6 6 7 72 Direction of Rotation = = ≠ ≠ = = ≠ ≠ ≠ = = ≠ ≠3 Efficiency 0.81 0.81 0.73 0.73 0.65 0.65 0.59 0.59 0.59 0.53 0.53 0.48 0.484 L (mm) 10.5 10.5 13 13 15.5 15.5 18 18 18 20.5 20.5 23 235 Weight g 7 7 8 8 9 9 10 10 10 11 11 12 12(oz) (0.246) (0.246) (0.282) (0.282) (0.317) (0.317) (0.352) (0.352) (0.352) (0.388) (0.388) (0.423) (0.423)6 Available with Motor – L2 - Length with motor (mm)16C18 29.2 29.2 31.7 31.7 34.2 34.2 36.7 36.7 36.7 39.2 39.2 41.7 41.716N78 41.5 41.5 44 44 46.5 46.5 49 49 49 51.5 51.5 54 5416G88 41.5 41.5 44 44 46.5 46.5 49 49 49 51.5 51.5 54 5417S78 32.2 32.2 34.7 34.7 37.2 37.2 39.7 39.7 39.7 42.2 42.2 44.7 44.717N78 39.4 39.4 41.9 41.9 44.4 44.4 47.9 47.9 47.9 49.4 49.4 51.9 51.9P110 29.5 29.5 32 32 34.5 34.5 37 37 37 39.5 39.5 42 4216DCP/16DCT/17DCT CB 39.5 39.5 42 42 44.5 44.5 47 47 47 49.5 49.5 52 5216DCP/16DCT/17DCT PM 39 39 41.5 41.5 44 44 46.5 46.5 46.5 49 49 51.5 51.5Characteristics 5 B16 • 0 • ···· B16 2R • 0 • ····7 Shaft Bearings Sleeve Ball Bearing8 Maximum Static Torque Nm (oz-in) 0.3 (42) 0.3 (42)9 Maximum Radial Force@ 8mm from mounting face N (lb) 5 (1.1) 10 (2.2)10 Maximum Axial Force N (lb) 5 (1.1) 10 (2.2)11 Maximum Press Fit Force N (lb) 100 (23) 100 (23)12 Average Backlash @ no-load 1.5° 1.5°13 Average Backlash @ 0.3 Nm 3° 3°Shaft Play:14 -radial μm ≤ 20 ≤ 1015 -axial μm 50-150 ≤ 10016 Maximum Recommended Input Speed rpm 8000 800017 Operating Temperature Range: °C (°F) -30 to +65 (-22 to +150)6.5 15±0.12x M2x4.5 deepØ111.52.5 L 9±0.5(1.1) 7.9±0.5Ø11.8Ø16Ø14.5Ø3-0.006-0.012Ø7 0-0.022 Ø4.7 0-0.05 Ø2.7 0-0.05 Ø16 0-0.1 L2Motor + Gearbox = L2M (Nm)Continuous working rangeTemporary working rangeValues at the output shaftn (rpm) Dynamic torque0.1 0.2 0.3 0192
