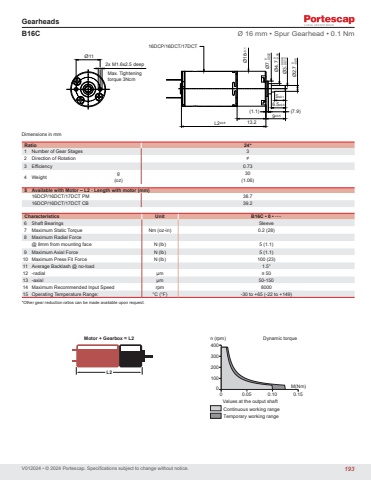

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmGearheadsB16C Ø 16 mm • Spur Gearhead • 0.1 NmRatio 24*1 Number of Gear Stages 32 Direction of Rotation ≠3 Efficiency 0.734 Weight g 30(oz) (1.06)5 Available with Motor – L2 - Length with motor (mm)16DCP/16DCT/17DCT PM 38.716DCP/16DCT/17DCT CB 39.2Characteristics Unit B16C • 0 • ····6 Shaft Bearings Sleeve7 Maximum Static Torque Nm (oz-in) 0.2 (28)8 Maximum Radial Force@ 8mm from mounting face N (lb) 5 (1.1)9 Maximum Axial Force N (lb) 5 (1.1)10 Maximum Press Fit Force N (lb) 100 (23)11 Average Backlash @ no-load 1.5°12 -radial μm ≤ 5013 -axial μm 50-15014 Maximum Recommended Input Speed rpm 800015 Operating Temperature Range: °C (°F) -30 to +65 (-22 to +149)*Other gear reduction ratios can be made available upon request.5±0.12x M1.6x2.5 deepØ1113.29±0.5(1.1)6.5±0.5Ø3-0.006-0.012Ø7 0-0.022 Ø4.7 0-0.05 Ø2.7 0-0.05 Max. Tighteningtorque 3Ncm16DCP/16DCT/17DCTØ16±0.1L2±0.8(7.9)L2Motor + Gearbox = L2M (Nm)Continuous working rangeTemporary working rangeValues at the output shaftn (rpm) Dynamic torque10000 0.05 0.10 0.15200300400193
