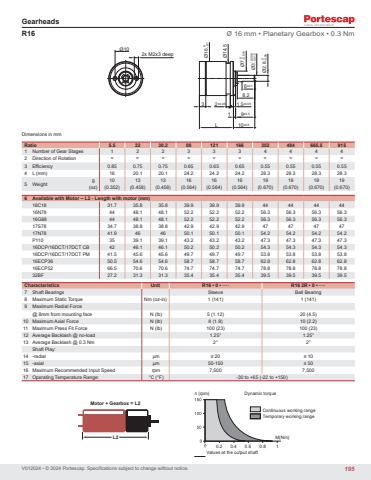

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmGearheadsR16 Ø 16 mm • Planetary Gearbox • 0.3 NmRatio 5.5 22 30.2 88 121 166 352 484 665.5 9151 Number of Gear Stages 1 2 2 3 3 3 4 4 4 42 Direction of Rotation = = = = = = = = = =3 Efficiency 0.85 0.75 0.75 0.65 0.65 0.65 0.55 0.55 0.55 0.554 L (mm) 16 20.1 20.1 24.2 24.2 24.2 28.3 28.3 28.3 28.35 Weight g 10 13 13 16 16 16 19 19 19 19(oz) (0.352) (0.458) (0.458) (0.564) (0.564) (0.564) (0.670) (0.670) (0.670) (0.670)6 Available with Motor – L2 - Length with motor (mm)16C18 31.7 35.8 35.8 39.9 39.9 39.9 44 44 44 4416N78 44 48.1 48.1 52.2 52.2 52.2 56.3 56.3 56.3 56.316G88 44 48.1 48.1 52.2 52.2 52.2 56.3 56.3 56.3 56.317S78 34.7 38.8 38.8 42.9 42.9 42.9 47 47 47 4717N78 41.9 46 46 50.1 50.1 50.1 54.2 54.2 54.2 54.2P110 35 39.1 39.1 43.2 43.2 43.2 47.3 47.3 47.3 47.316DCP/16DCT/17DCT CB 42 46.1 46.1 50.2 50.2 50.2 54.3 54.3 54.3 54.316DCP/16DCT/17DCT PM 41.5 45.6 45.6 49.7 49.7 49.7 53.8 53.8 53.8 53.816ECP36 50.5 54.6 54.6 58.7 58.7 58.7 62.8 62.8 62.8 62.816ECP52 66.5 70.6 70.6 74.7 74.7 74.7 78.8 78.8 78.8 78.832BF 27.2 31.3 31.3 35.4 35.4 35.4 39.5 39.5 39.5 39.5Characteristics Unit R16 • 0 • ···· R16 2R • 0 • ····7 Shaft Bearings Sleeve Ball Bearing8 Maximum Static Torque Nm (oz-in) 1 (141) 1 (141)9 Maximum Radial Force@ 8mm from mounting face N (lb) 5 (1.12) 20 (4.5)10 Maximum Axial Force N (lb) 8 (1.8) 10 (2.2)11 Maximum Press Fit Force N (lb) 100 (23) 100 (23)12 Average Backlash @ no-load 1.25° 1.25°13 Average Backlash @ 0.3 Nm 2° 2°Shaft Play:14 -radial μm ≤ 20 ≤ 1015 -axial μm 50-150 ≤ 5016 Maximum Recommended Input Speed rpm 7,500 7,500 17 Operating Temperature Range: °C (°F) -30 to +65 (-22 to +150)3L 10±0.56±0.18.21 9±0.52x M2x3 deepØ3-0.006-0.012Ø7 0-0.015 Ø2.8 0-0.05 Ø16 0-0.1 2±0.05 1.5±0.05Ø14.5Ø10L2Motor + Gearbox = L2M (Nm)Continuous working rangeTemporary working rangeValues at the output shaftn (rpm) Dynamic torque0.2 0.4 0.6 0.8 1M (Nm)Continuous working rangeTemporary working rangeValues at the output shaftn (rpm) Dynamic torque0.2 0.4 0.6 0.8 1195
