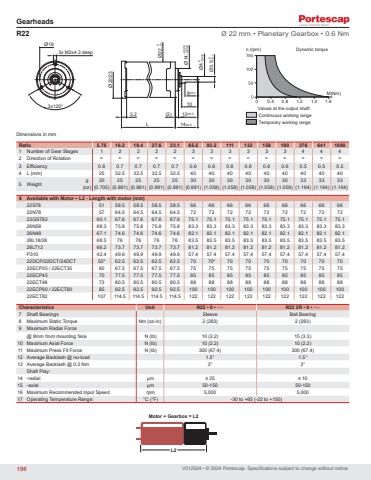

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmGearheadsR22 Ø 22 mm • Planetary Gearbox • 0.6 NmRatio 5.75 16.2 19.4 27.6 33.1 65.5 93.2 111 132 159 190 376 641 10901 Number of Gear Stages 1 2 2 2 2 3 3 3 3 3 3 4 4 42 Direction of Rotation = = = = = = = = = = = = = =3 Efficiency 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.54 L (mm) 25 32.5 32.5 32.5 32.5 40 40 40 40 40 40 40 40 405 Weight g 20 25 25 25 25 30 30 30 30 30 30 33 33 33(oz) (0.705) (0.881) (0.881) (0.881) (0.881) (0.881) (1.058) (1.058) (1.058) (1.058) (1.058) (1.164) (1.164) (1.164)6 Available with Motor – L2 - Length with motor (mm)22S78 51 58.5 58.5 58.5 58.5 66 66 66 66 66 66 66 66 6622N78 57 64.5 64.5 64.5 64.5 72 72 72 72 72 72 72 72 7223GST82 60.1 67.6 67.6 67.6 67.6 75.1 75.1 75.1 75.1 75.1 75.1 75.1 75.1 75.126N58 68.3 75.8 75.8 75.8 75.8 83.3 83.3 83.3 83.3 83.3 83.3 83.3 83.3 83.326N48 67.1 74.6 74.6 74.6 74.6 82.1 82.1 82.1 82.1 82.1 82.1 82.1 82.1 82.128L18/28 68.5 76 76 76 76 83.5 83.5 83.5 83.5 83.5 83.5 83.5 83.5 83.528LT12 66.2 73.7 73.7 73.7 73.7 81.2 81.2 81.2 81.2 81.2 81.2 81.2 81.2 81.2P310 42.4 49.9 49.9 49.9 49.9 57.4 57.4 57.4 57.4 57.4 57.4 57.4 57.4 57.422DCP/22DCT/24DCT 55* 62.5 62.5 62.5 62.5 70 70* 70 70 70 70 70 70 7022ECP35 / 22ECT35 60 67.5 67.5 67.5 67.5 75 75 75 75 75 75 75 75 7522ECP45 70 77.5 77.5 77.5 77.5 85 85 85 85 85 85 85 85 8522ECT48 73 80.5 80.5 80.5 80.5 88 88 88 88 88 88 88 88 8822ECP60 / 22ECT60 85 92.5 92.5 92.5 92.5 100 100 100 100 100 100 100 100 10022ECT82 107 114.5 114.5 114.5 114.5 122 122 122 122 122 122 122 122 122Characteristics Unit R22 • 0 • ···· R22 2R • 0 • ····7 Shaft Bearings Sleeve Ball Bearing8 Maximum Static Torque Nm (oz-in) 2 (283) 2 (283)9 Maximum Radial Force@ 8mm from mounting face N (lb) 10 (2.2) 15 (3.3)10 Maximum Axial Force N (lb) 10 (2.2) 10 (2.2)11 Maximum Press Fit Force N (lb) 300 (67.4) 300 (67.4)12 Average Backlash @ no-load 1.5° 1.5°13 Average Backlash @ 0.3 Nm 3° 3°Shaft Play:14 -radial μm ≤ 25 ≤ 1015 -axial μm 50-150 50-15016 Maximum Recommended Input Speed rpm 5,000 5,000 17 Operating Temperature Range: °C (°F) -30 to +65 (-22 to +150)3.214±0.51012±0.58±0.23x M2x4.3 deepL(2)3x120°Ø19Ø22/23Ø14-0.020-0.038Ø3.5 0-0.1 Ø4 0-0.012 Ø22 0-0.1 L2Motor + Gearbox = L2M (Nm)Continuous working rangeTemporary working rangeValues at the output shaftn (rpm) Dynamic torque0.4 0.8 1.2 1.4 1.6196
