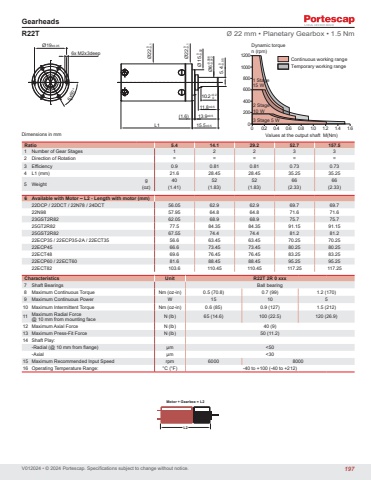

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmGearheadsR22T Ø 22 mm • Planetary Gearbox • 1.5 NmRatio 5.4 14.1 29.2 52.7 157.51 Number of Gear Stages 1 2 2 3 32 Direction of Rotation = = = = =3 Efficiency 0.9 0.81 0.81 0.73 0.734 L1 (mm) 21.6 28.45 28.45 35.25 35.255 Weight g 40 52 52 66 66(oz) (1.41) (1.83) (1.83) (2.33) (2.33)6 Available with Motor – L2 - Length with motor (mm)22DCP / 22DCT / 22N78 / 24DCT 56.05 62.9 62.9 69.7 69.722N98 57.95 64.8 64.8 71.6 71.623GST2R82 62.05 68.9 68.9 75.7 75.725GT2R82 77.5 84.35 84.35 91.15 91.1525GST2R82 67.55 74.4 74.4 81.2 81.222ECP35 / 22ECP35-2A / 22ECT35 56.6 63.45 63.45 70.25 70.2522ECP45 66.6 73.45 73.45 80.25 80.2522ECT48 69.6 76.45 76.45 83.25 83.2522ECP60 / 22ECT60 81.6 88.45 88.45 95.25 95.2522ECT82 103.6 110.45 110.45 117.25 117.25Characteristics Unit R22T 2R 0 xxx7 Shaft Bearings Ball bearing8 Maximum Continuous Torque Nm (oz-in) 0.5 (70.8) 0.7 (99) 1.2 (170)9 Maximum Continuous Power W 15 10 510 Maximum Intermittent Torque Nm (oz-in) 0.6 (85) 0.9 (127) 1.5 (212)11 Maximum Radial Force @ 10 mm from mounting face N (lb) 65 (14.6) 100 (22.5) 120 (26.9)12 Maximum Axial Force N (lb) 40 (9)13 Maximum Press-Fit Force N (lb) 50 (11.2)14 Shaft Play:-Radial (@ 10 mm from flange) μm <50-Axial μm <3015 Maximum Recommended Input Speed rpm 6000 800016 Operating Temperature Range: °C (°F) -40 to +100 (-40 to +212)6x60°6x M2x3deep(1.6)L1Ø6-0.006-0.012Ø22 0-0.1Ø22 0-0.110.2+0.20Ø15 0-0.025.4 0-0.05Ø19±0.0511.8±0.515.5±0.513.9±0.5L2Motor + Gearbox = L2Continuous working rangeTemporary working rangeValues at the output shaft M(Nm)Dynamic torquen (rpm)0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.61 Stage15 W2 Stage10 W3 Stage 5 W 020040060080010001200197
