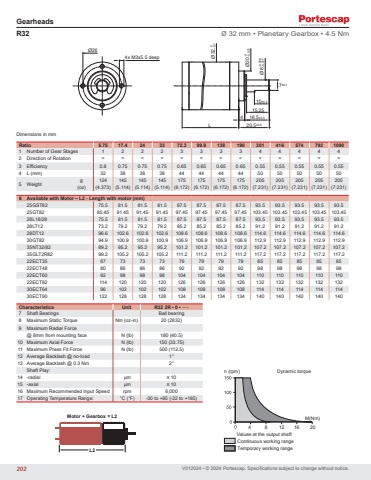

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmGearheadsR32 Ø 32 mm • Planetary Gearbox • 4.5 NmRatio 5.75 17.4 24 33 72.3 99.8 138 190 301 416 574 792 10901 Number of Gear Stages 1 2 2 2 3 3 3 3 4 4 4 4 42 Direction of Rotation = = = = = = = = = = = = =3 Efficiency 0.8 0.75 0.75 0.75 0.65 0.65 0.65 0.65 0.55 0.55 0.55 0.55 0.554 L (mm) 32 38 38 38 44 44 44 44 50 50 50 50 505 Weight g 124 145 145 145 175 175 175 175 205 205 205 205 205(oz) (4.373) (5.114) (5.114) (5.114) (6.172) (6.172) (6.172) (6.172) (7.231) (7.231) (7.231) (7.231) (7.231)6 Available with Motor – L2 - Length with motor (mm)25GST82 75.5 81.5 81.5 81.5 87.5 87.5 87.5 87.5 93.5 93.5 93.5 93.5 93.525GT82 85.45 91.45 91.45 91.45 97.45 97.45 97.45 97.45 103.45 103.45 103.45 103.45 103.4528L18/28 75.5 81.5 81.5 81.5 87.5 87.5 87.5 87.5 93.5 93.5 93.5 93.5 93.528LT12 73.2 79.2 79.2 79.2 85.2 85.2 85.2 85.2 91.2 91.2 91.2 91.2 91.228DT12 96.6 102.6 102.6 102.6 108.6 108.6 108.6 108.6 114.6 114.6 114.6 114.6 114.630GT82 94.9 100.9 100.9 100.9 106.9 106.9 106.9 106.9 112.9 112.9 112.9 112.9 112.935NT32/82 89.2 95.2 95.2 95.2 101.2 101.2 101.2 101.2 107.2 107.2 107.2 107.2 107.235GLT2R82 99.2 105.2 105.2 105.2 111.2 111.2 111.2 111.2 117.2 117.2 117.2 117.2 117.222ECT35 67 73 73 73 79 79 79 79 85 85 85 85 8522ECT48 80 86 86 86 92 92 92 92 98 98 98 98 9822ECT60 92 98 98 98 104 104 104 104 110 110 110 110 11022ECT82 114 120 120 120 126 126 126 126 132 132 132 132 13230ECT64 96 102 102 102 108 108 108 108 114 114 114 114 11430ECT90 122 128 128 128 134 134 134 134 140 140 140 140 140Characteristics Unit R32 2R • 0 • ····7 Shaft Bearings Ball bearing8 Maximum Static Torque Nm (oz-in) 20 (2832)9 Maximum Radial Force@ 8mm from mounting face N (lb) 180 (40.5)10 Maximum Axial Force N (lb) 150 (33.75)11 Maximum Press Fit Force N (lb) 500 (112.5)12 Average Backlash @ no-load 1°13 Average Backlash @ 0.3 Nm 2°Shaft Play:14 -radial μm ≤ 1015 -axial μm ≤ 1016 Maximum Recommended Input Speed rpm 6,00017 Operating Temperature Range: °C (°F) -30 to +85 (-22 to +185)420.5±0.516.5±0.515.2510±0.2L 4x M3x5.5 deepØ26Ø8-0.008-0.017Ø32 0-0.1 Ø20 0-0.021 7±0.1L2Motor + Gearbox = L2 M (Nm)Continuous working rangeTemporary working rangeValues at the output shaftn (rpm) Dynamic torque4 8 12 16 20202
