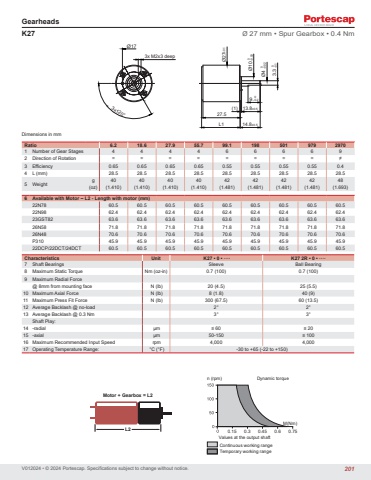

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmGearheadsK27 Ø 27 mm • Spur Gearbox • 0.4 NmRatio 6.2 18.6 27.9 55.7 99.1 198 501 979 29701 Number of Gear Stages 4 4 4 4 6 6 6 6 92 Direction of Rotation = = = = = = = = ≠3 Efficiency 0.65 0.65 0.65 0.65 0.55 0.55 0.55 0.55 0.44 L (mm) 28.5 28.5 28.5 28.5 28.5 28.5 28.5 28.5 28.55 Weight g 40 40 40 40 42 42 42 42 48(oz) (1.410) (1.410) (1.410) (1.410) (1.481) (1.481) (1.481) (1.481) (1.693)6 Available with Motor – L2 - Length with motor (mm)22N78 60.5 60.5 60.5 60.5 60.5 60.5 60.5 60.5 60.522N98 62.4 62.4 62.4 62.4 62.4 62.4 62.4 62.4 62.423GST82 63.6 63.6 63.6 63.6 63.6 63.6 63.6 63.6 63.626N58 71.8 71.8 71.8 71.8 71.8 71.8 71.8 71.8 71.826N48 70.6 70.6 70.6 70.6 70.6 70.6 70.6 70.6 70.6P310 45.9 45.9 45.9 45.9 45.9 45.9 45.9 45.9 45.922DCP/22DCT/24DCT 60.5 60.5 60.5 60.5 60.5 60.5 60.5 60.5 60.5Characteristics Unit K27 • 0 • ···· K27 2R • 0 • ····7 Shaft Bearings Sleeve Ball Bearing8 Maximum Static Torque Nm (oz-in) 0.7 (100) 0.7 (100)9 Maximum Radial Force@ 8mm from mounting face N (lb) 20 (4.5) 25 (5.5)10 Maximum Axial Force N (lb) 8 (1.8) 40 (9)11 Maximum Press Fit Force N (lb) 300 (67.5) 60 (13.5)12 Average Backlash @ no-load 2° 2°13 Average Backlash @ 0.3 Nm 3° 3°Shaft Play:14 -radial μm ≤ 60 ≤ 2015 -axial μm 50-150 ≤ 10016 Maximum Recommended Input Speed rpm 4,000 4,000 17 Operating Temperature Range: °C (°F) -30 to +65 (-22 to +150)(1)L1 14.8±0.513.8±0.527.53x M2x3 deep3x120°Ø17Ø4 0-0.02Ø10 0-0.033.3 0-0.1 9 0-0.2 Ø27±0.1L2Motor + Gearbox = L2M (Nm)Continuous working rangeTemporary working rangeValues at the output shaftn (rpm) Dynamic torque0.15 0.3 0.45 0.6 0.75201
