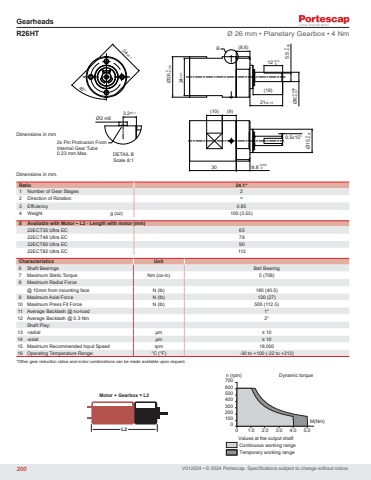

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmGearheadsDimensions in mm.R26HT Ø 26 mm • Planetary Gearbox • 4 NmRatio 24.1*1 Number of Gear Stages 22 Direction of Rotation =3 Efficiency 0.854 Weight g (oz) 100 (3.53)5 Available with Motor – L2 - Length with motor (mm)22ECT35 Ultra EC 6522ECT48 Ultra EC 7822ECT60 Ultra EC 9022ECT82 Ultra EC 112Characteristics Unit6 Shaft Bearings Ball Bearing7 Maximum Static Torque Nm (oz-in) 5 (708)8 Maximum Radial Force@ 10mm from mounting face N (lb) 180 (40.5)9 Maximum Axial Force N (lb) 120 (27)10 Maximum Press Fit Force N (lb) 500 (112.5)11 Average Backlash @ no-load 1°12 Average Backlash @ 0.3 Nm 2°Shaft Play:13 -radial μm ≤ 1014 -axial μm ≤ 1015 Maximum Recommended Input Speed rpm 18,00016 Operating Temperature Range: °C (°F) -30 to +100 (-22 to +212)*Other gear reduction ratios and motor combinations can be made available upon request.(8.8)3.2±0.121±0.1530Ø2 m6Ø6-0.006-0.0112+0.2+0Ø26 0-0.05 (19)24B±0.145°24±0.12x Pin Protrusion From Internal Gear Tube 0.23 mm Max.5.5-0-0.05(10) (9)Ø15-0-0.5x15° 0.018.8+0.05-0DETAIL BScale 8:1L2Motor + Gearbox = L2Continuous working rangeTemporary working rangeValues at the output shaftn (rpm) Dynamic torque0 1.0 2.0 3.0 4.0 5.00100200300400500600700M(Nm) 200
