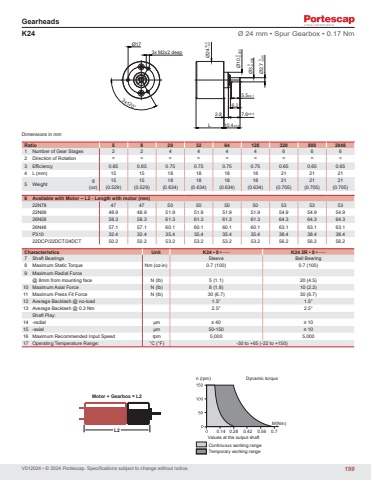

V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmGearheadsK24 Ø 24 mm • Spur Gearbox • 0.17 NmRatio 5 8 20 32 64 128 320 800 20481 Number of Gear Stages 2 2 4 4 4 4 6 6 62 Direction of Rotation = = = = = = = = =3 Efficiency 0.85 0.85 0.75 0.75 0.75 0.75 0.65 0.65 0.654 L (mm) 15 15 18 18 18 18 21 21 215 Weight g 15 15 18 18 18 18 21 21 21(oz) (0.529) (0.529) (0.634) (0.634) (0.634) (0.634) (0.705) (0.705) (0.705)6 Available with Motor – L2 - Length with motor (mm)22N78 47 47 50 50 50 50 53 53 5322N98 48.9 48.9 51.9 51.9 51.9 51.9 54.9 54.9 54.926N58 58.3 58.3 61.3 61.3 61.3 61.3 64.3 64.3 64.326N48 57.1 57.1 60.1 60.1 60.1 60.1 63.1 63.1 63.1P310 32.4 32.4 35.4 35.4 35.4 35.4 38.4 38.4 38.422DCP/22DCT/24DCT 50.2 50.2 53.2 53.2 53.2 53.2 56.2 56.2 56.2Characteristics Unit K24 • 0 • ···· K24 2R • 0 • ····7 Shaft Bearings Sleeve Ball Bearing8 Maximum Static Torque Nm (oz-in) 0.7 (100) 0.7 (100)9 Maximum Radial Force@ 8mm from mounting face N (lb) 5 (1.1) 20 (4.5)10 Maximum Axial Force N (lb) 8 (1.8) 10 (2.2)11 Maximum Press Fit Force N (lb) 30 (6.7) 30 (6.7)12 Average Backlash @ no-load 1.5° 1.5°13 Average Backlash @ 0.3 Nm 2.5° 2.5°Shaft Play:14 -radial μm ≤ 40 ≤ 1015 -axial μm 50-150 ≤ 1016 Maximum Recommended Input Speed rpm 5,000 5,000 17 Operating Temperature Range: °C (°F) -30 to +65 (-22 to +150)6.25.5±0.13x M2x2 deepL 10.4±0.52.8 7.6±0.53x120°Ø17Ø3 0-0.006Ø10 0-0.022 Ø2.7 0-0.05 Ø24+0.2-0.3 L2Motor + Gearbox = L2M (Nm)Continuous working rangeTemporary working rangeValues at the output shaftn (rpm) Dynamic torque0.14 0.28 0.42 0.56 0.7199
