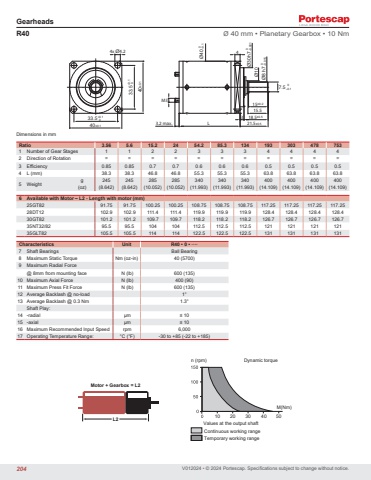

                                    V012024 • © 2024 Portescap. Specifications subject to change without notice.Dimensions in mmGearheadsR40 Ø 40 mm • Planetary Gearbox • 10 NmRatio 3.56 5.6 15.2 24 54.2 85.3 134 193 303 478 7531 Number of Gear Stages 1 1 2 2 3 3 3 4 4 4 42 Direction of Rotation = = = = = = = = = = =3 Efficiency 0.85 0.85 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.54 L (mm) 38.3 38.3 46.8 46.8 55.3 55.3 55.3 63.8 63.8 63.8 63.85 Weight g 245 245 285 285 340 340 340 400 400 400 400(oz) (8.642) (8.642) (10.052) (10.052) (11.993) (11.993) (11.993) (14.109) (14.109) (14.109) (14.109)6 Available with Motor – L2 - Length with motor (mm)25GT82 91.75 91.75 100.25 100.25 108.75 108.75 108.75 117.25 117.25 117.25 117.2528DT12 102.9 102.9 111.4 111.4 119.9 119.9 119.9 128.4 128.4 128.4 128.430GT82 101.2 101.2 109.7 109.7 118.2 118.2 118.2 126.7 126.7 126.7 126.735NT32/82 95.5 95.5 104 104 112.5 112.5 112.5 121 121 121 12135GLT82 105.5 105.5 114 114 122.5 122.5 122.5 131 131 131 131Characteristics Unit R40 • 0 • ····7 Shaft Bearings Ball Bearing8 Maximum Static Torque Nm (oz-in) 40 (5700)9 Maximum Radial Force@ 8mm from mounting face N (lb) 600 (135)10 Maximum Axial Force N (lb) 400 (90)11 Maximum Press Fit Force N (lb) 600 (135)12 Average Backlash @ no-load 1°13 Average Backlash @ 0.3 Nm 1.3°Shaft Play:14 -radial μm ≤ 1015 -axial μm ≤ 1016 Maximum Recommended Input Speed rpm 6,00017 Operating Temperature Range: °C (°F) -30 to +85 (-22 to +185)4x Ø4.215±0.215.53.2 max.4M33 18.5±0.5L 21.5±0.533.5+0.1 0 Ø30h7 0-0.021Ø8 h7 0-0.0157.5 0-0.1 Ø10Ø40 0-0.1 40±0.133.5+0.10 40±0.1L2Motor + Gearbox = L2M (Nm)Continuous working rangeTemporary working rangeValues at the output shaftn (rpm) Dynamic torque10 20 30 40 50204
