无刷无槽直流电机

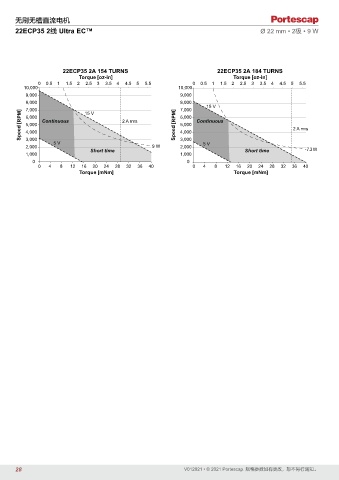

22ECP35 2线 Ultra EC™ Ø 22 mm • 2极 • 9 W

22ECP35 2A 154 TURNS 22ECP35 2A 184 TURNS
Torque [oz-in] Torque [oz-in]
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5
10,000 10,000
9,000 9,000
8,000 8,000
7,000 15 V 7,000 15 V
Speed [RPM] 5,000 Continuous 2 A rms Speed [RPM] 5,000 Continuous 2 A rms
6,000
6,000
4,000
4,000
3,000
2,000 5 V Short time 9 W 3,000 5 V Short time 7.3 W
2,000
1,000 1,000
0 0
0 4 8 12 16 20 24 28 32 36 40 0 4 8 12 16 20 24 28 32 36 40
Torque [mNm] Torque [mNm]

28 V012021 • © 2021 Portescap. 规格参数如有更改，恕不另行通知。
